BGM4215-120 gimbal motor
BGM4215-120 gimbal motor

BGM4215-120 gimbal motor

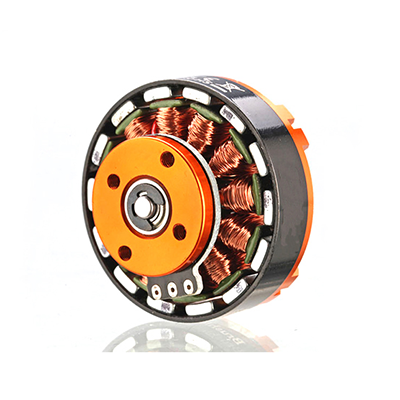

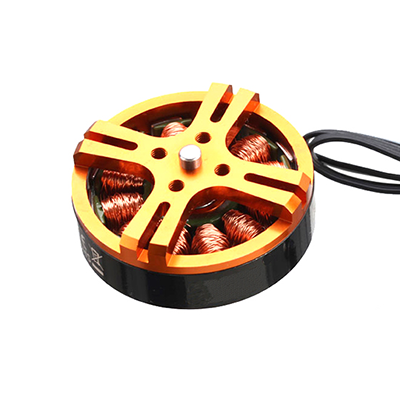

High performance brushless gimbal motor BGM4215-120


Model:BGM4215-120

Poles and Slots:12N14P


Camera Range :such as NEX camera


Turn:120T

Wire(mm):0.19

Camera Range :400g

Shaft:diameter 4.0

Weight:71g

Motor Size(mm):diameter 42 * 15

Ri: 15.0ohm

Torque:500g@5V&0.47A

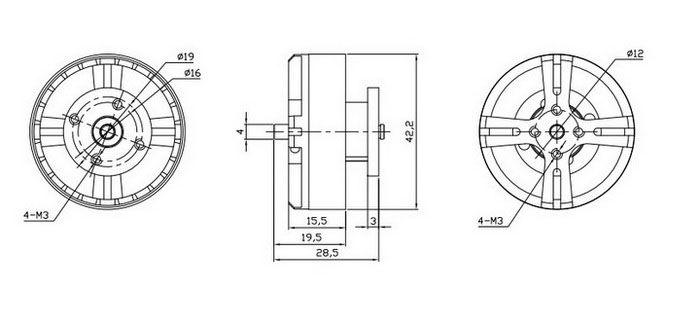

BGM4215-120 drawing.jpg
