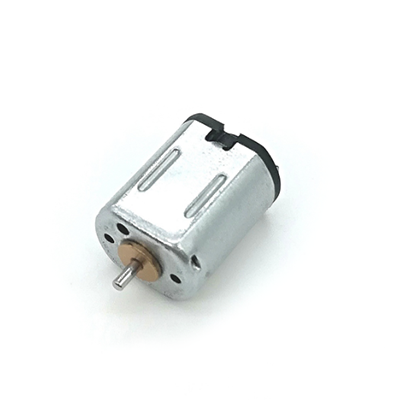

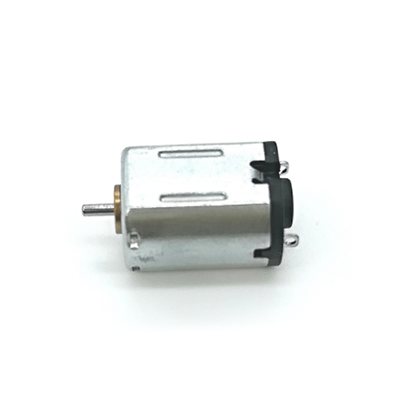

TF-M10F-06185 3.5V 19500rpm 玩具马达/ 舵机马达
马达特点:
低噪音
马达寿命长
高精度
型号: TF-M10F-06185
电压: 1.0-6.0V
重量: 3.5g

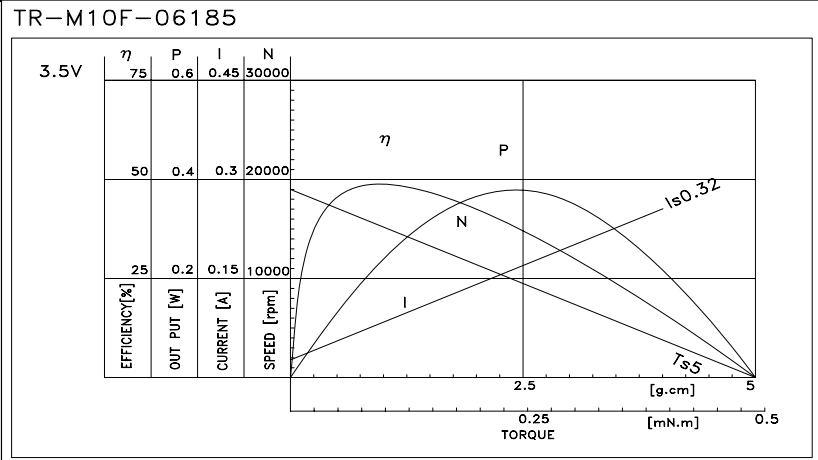

CONDITION @ 3.5V | TYPE | VALUE | TOLERANCE |
NO LOAD 空载 | SPEED转速 (rpm) | 19500 | ±15% |
CURRENT电流 (A) | 0.04 | 0.05MAX | |
AT MAXIMUM EFFICIENCY 最大效率 | SPEED转速 (rpm) | 14407 | ±15% |
CURRENT电流 (A) | 0.11 | 0.14MAX | |
TORQUE 扭力(mN.m) | 0.13 | 0.1MIN | |
TORQUE 扭力(g.cm) | 1.31 | 1.04MIN | |
OUTPUT输出功率 (W) | 0.19 | 0.15MIN | |
EEF效率 (%) | 48.73 | 39MIN | |
STALL 堵转 | TORQUE扭力 (mN.m) | 0.49 | 0.39MIN |
TORQUE扭力 (g.cm) | 5 | 4MIN | |
CURRENT 电流(A) | 0.32 | 0.38MAX |
