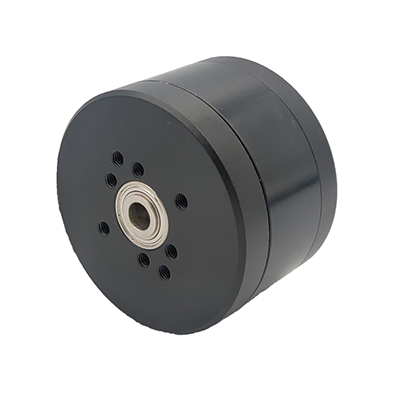

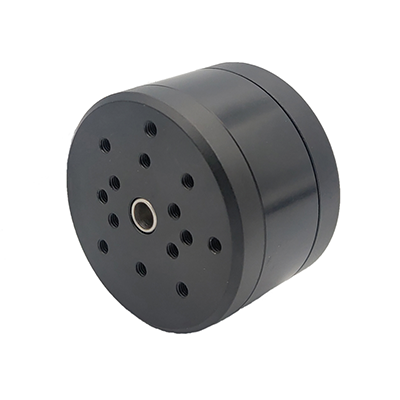

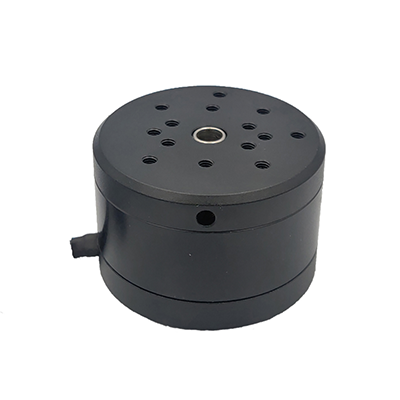

Model：GBM4114H-120T
No load current (A):0.096
voltage range(Lipo):3-6S
Inner shaft diameter (mm):5.0
Turns:120T
shaft diameter (mm): 7.0
Max. current (A):8
Max. power(W):174

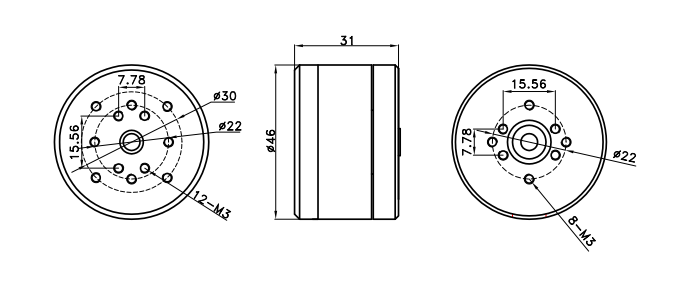

motor size:46mm(OD)*31mm
wire length (mm): black JR connector Silicone wire 250mm
Stator size :40.6mm(OD)*14mm
Motor structure : 24N22P
KV Value :29
stall torque: N.M/V 0.275/3S
Internal resistance of coil Ω:16.5
Motor weight including wire 152.4g
