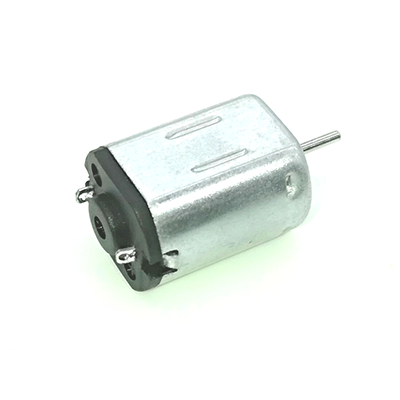

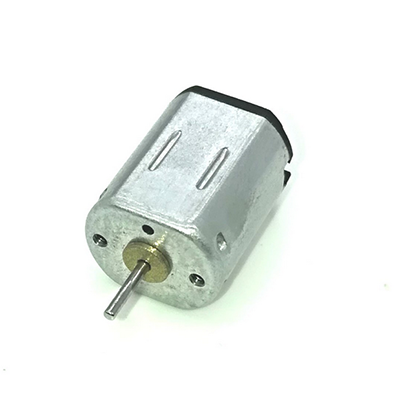

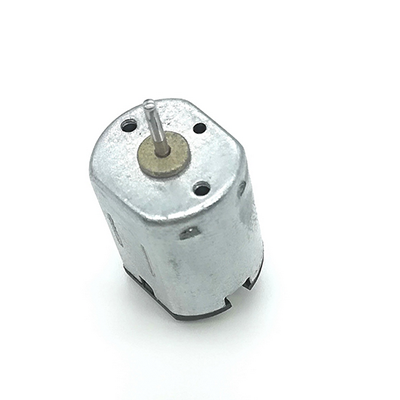

TF-N20F-10140 7.4V 31000rpm brush motor
TF-N20F-10140 7.4V 31000rpm brush motor

TF-N20F-10140 7.4V 31000rpm brush motor


TF-N20F-10140 7.4V 31000rpm brush motor


Motor features:

low noise

Long motor life

High precision

Model: TF-N20F-10140

Voltage: 1.5-9.0V

Weight: 5.0g (0.123 oz)

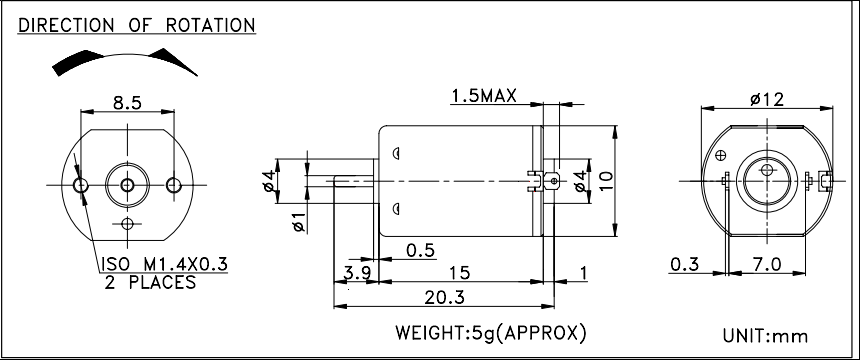

Motor Drawing:





CONDITION @ 7.4V

TYPE

VALUE

TOLERANCE

NO LOAD

SPEED (rpm)

31000

±15%

CURRENT (A)

0.05

0.07MAX

AT MAXIMUM EFFICIENCY


SPEED (rpm)

26214

±15%

CURRENT (A)

0.27

0.33MAX

TORQUE(mN.m)

0.42

0.34MIN

TORQUE (g.cm)

4.32

3.46MIN

OUTPUT (W)

1.16

0.93MIN

EEF (%)

57.35

45.9MIN

STALL

TORQUE (mN.m)

2.74

2.2MIN

TORQUE (g.cm)

28

22.4MIN

CURRENT (A)

1.5

1.8MAX

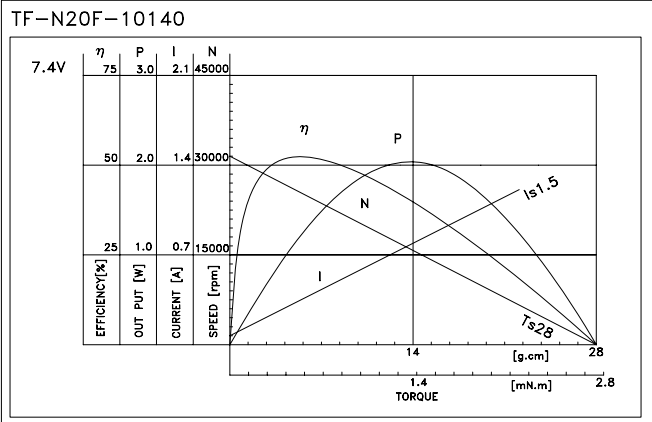

Motor characteristics curve:
