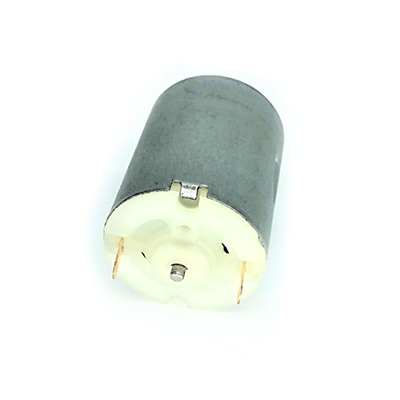

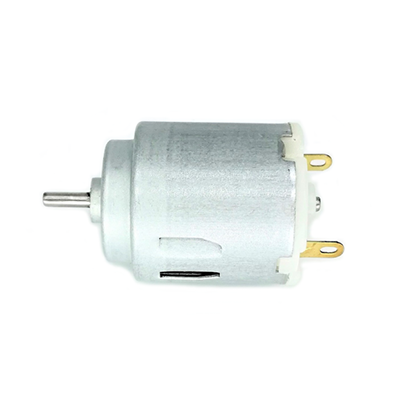

TR-14-18100 3V 11000rpm DC brush motor
TR-14-18100 3V 11000rpm DC brush motor

TR-14-18100 3V 11000rpm DC brush motor


TR-14-18100 3V 11000rpm brush motor toy motor


Motor features:

low noise

Long motor life

High precision


Model: TR-14-18100

Voltage: 1.5-6.0V

Weight:19g

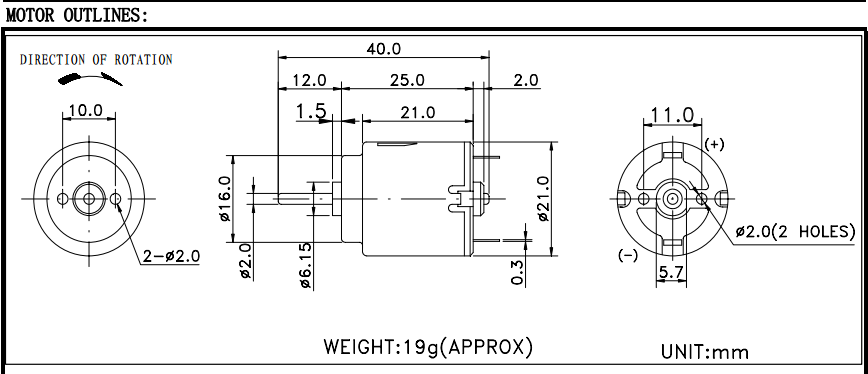

Motor drawing:









CONDITION @ 3.0V

TYPE

VALUE

TOLERANCE

NO LOAD

SPEED (rpm)

11000

±15%

CURRENT (A)

0.18

0.23MAX

AT MAXIMUM EFFICIENCY


SPEED (rpm)

8462

±15%

CURRENT (A)

0.60

0.72MAX

TORQUE (mN.m)

1.13

0.9MIN

TORQUE (g.cm)

11.54

9.23MIN

OUTPUT (W)

1

0.8MIN

EEF (%)

55.63

44.5MIN

STALL

TORQUE (mN.m)

4.9

3.92MIN

TORQUE (g.cm)

50

40MIN

CURRENT(A)

2

2.4MAX

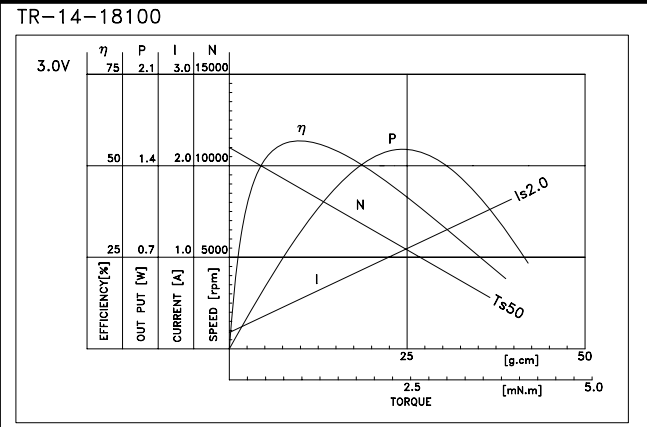

Motor characteristics curve:
