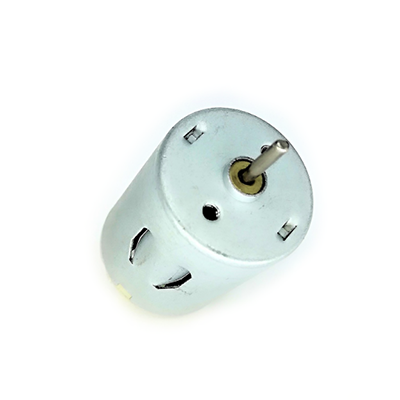

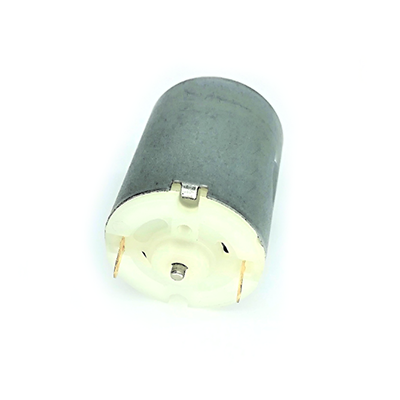

TR-28SAC-3540 4.5V 17000rpm brush motor
TR-28SAC-3540 4.5V 17000rpm brush motor

TR-28SAC-3540 4.5V 17000rpm brush motor


TR-28SAC-3540 4.5V 17000rpm brush motor


Motor features:

low noise

Long motor life

High precision


model: TR-28SAC-3540

voltage: 1.5-9.0V

weight:42g

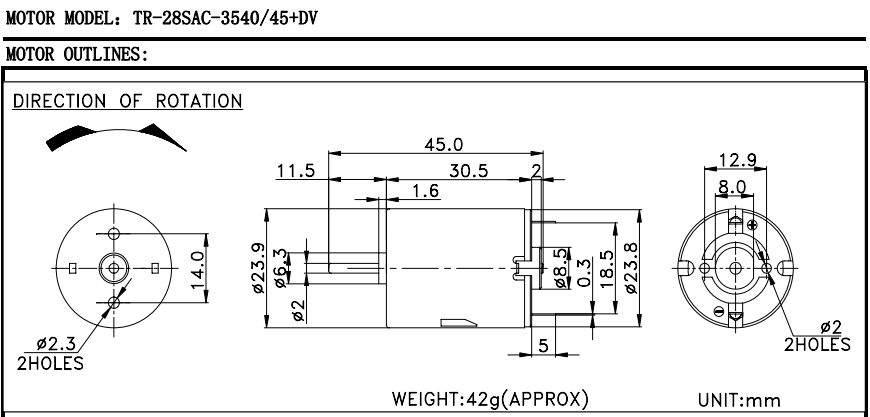

Motor Outline:







CONDITION @ 4.5V

TYPE

VALUE

TOLERANCE

NO LOAD

SPEED (rpm)

17000

±15%

CURRENT (A)

0.45

0.59MAX

AT MAXIMUM EFFICIENCY


SPEED (rpm)

13893

±15%

CURRENT (A)

2.01

2.41MAX

TORQUE (mN.m)

2.87

2.29MIN

TORQUE (g.cm)

29.24

23.4MIN

OUTPUT (W)

4.17

3.33MIN

EEF (%)

46.01

36.8MIN

STALL

TORQUE (mN.m)

15.68

12.5MIN

TORQUE (g.cm)

160

128MIN

CURRENT (A)

9

10.8MAX
