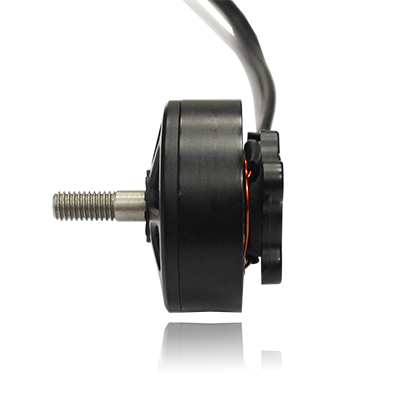

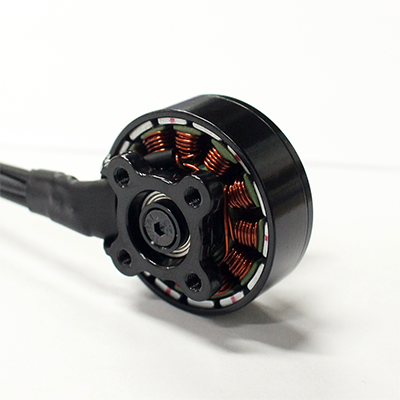

TM2807 Specifications参数 |
TM2807 Specifications | ||||||
测试项目 | KV1300 | 空载电流(10V) | 1.3A | |||

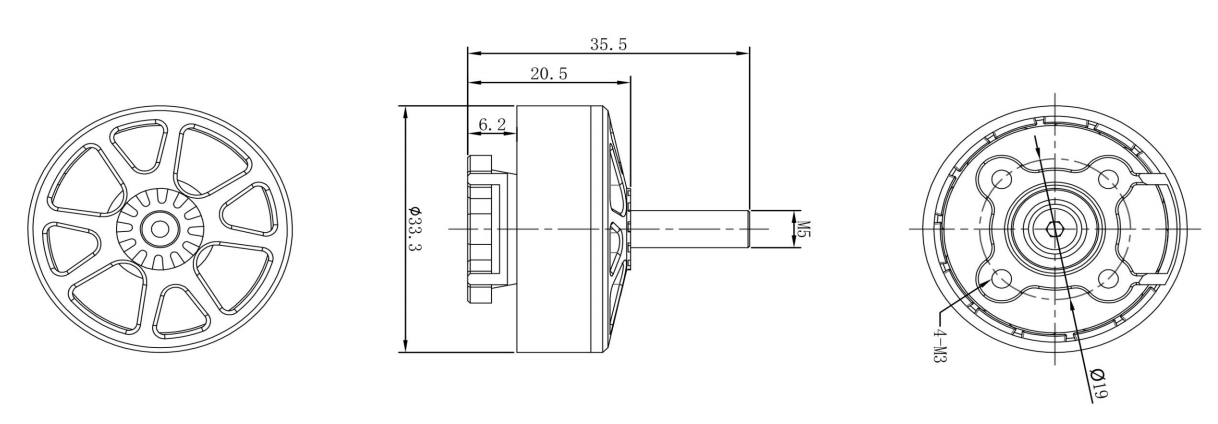

电机尺寸 | 33.3*35.5mm | 内阻 | 51mΩ | |||
结构 | 12N14P | 电池数量 | 3-6S | |||
轴承直径 | 5mm | 桨 | 7寸桨 | |||
出线 | 18#AWG 250mm | 峰值电流 (6S) | 45.2A | |||
重量 | 48g(W/0 Silicone Wire) | 最大功率(6S) | 1085W | |||
LOAD TEST DATA 负载测试数据 | ||||||
item N | Propeller桨 | VALTAGE (V)电压 | Current (A)电流 | Trust (g) | POWER(W) | Trust efficincy (G/W) |
TM2807-1300KV | GF7035*3叶桨 操作温度54.8℃ | 24.0V | 5 | 588 | 120 | 4.9 |
24.0V | 10 | 977 | 240 | 4.07 | ||
24.0V | 15 | 1323 | 360 | 3.675 | ||
24.0V | 20 | 1554 | 480 | 3.24 | ||
24.0V | 42.5 | 2478 | 1020 | 2.43 | ||
TM2807-1300KV | GF7040*3叶桨 操作温度60.1℃ | 24.0V | 5.1 | 609 | 122 | 4.99 |
24.0V | 10 | 1030 | 240 | 4.29 | ||
24.0V | 15 | 1333 | 360 | 3.7 | ||
24.0V | 20 | 1648 | 480 | 3.43 | ||
24.0V | 45.2 | 2614 | 1085 | 2.41 |
