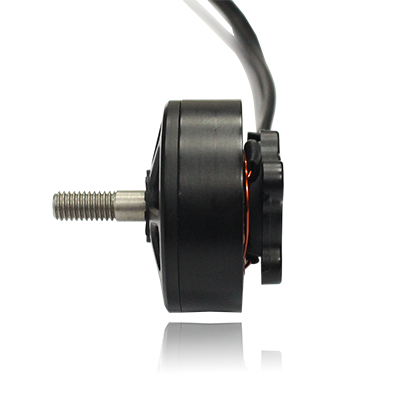

TM2812 Specifications | ||||||
Testltem | KV900 | Idle Current(10V) | 1.4A | |||

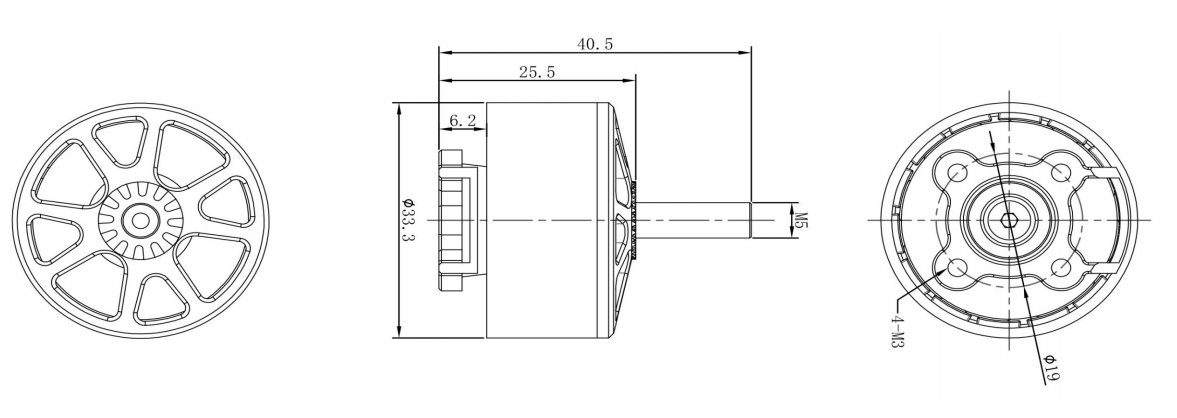

Motor Dimensions | 33.3*40.5mm | Internal Resistance | 78mΩ | |||
Framework | 12N14P | No.of cells | 3-6S | |||
Bearing Shaft | 5mm | Propeller | 9寸桨 | |||
Lead | 18#AWG 250mm | Peak Current(6S) | 49.5A | |||
Weight | 75g(W/0 Silicone Wire) | Max.Power(6S) | 1188W | |||
LOAD TEST DATA | ||||||
item N | Propeller | VALTAGE (V) | Current (A) | Trust (g) | POWER(W) | Trust efficincy (G/W) |
TM2812-900KV | GF9045*3叶桨 | 24.0V | 5 | 683 | 120 | 5.69 |
24.0V | 10 | 1218 | 240 | 5.08 | ||
24.0V | 15 | 1575 | 360 | 4.38 | ||
24.0V | 20 | 2027 | 480 | 4.22 | ||
24.0V | 49.5 | 3276 | 1188 | 2.76 |
