TM3110 Specifications | ||||||
Testltem | KV900 | Idle Current(10V) | 1.3A | |||

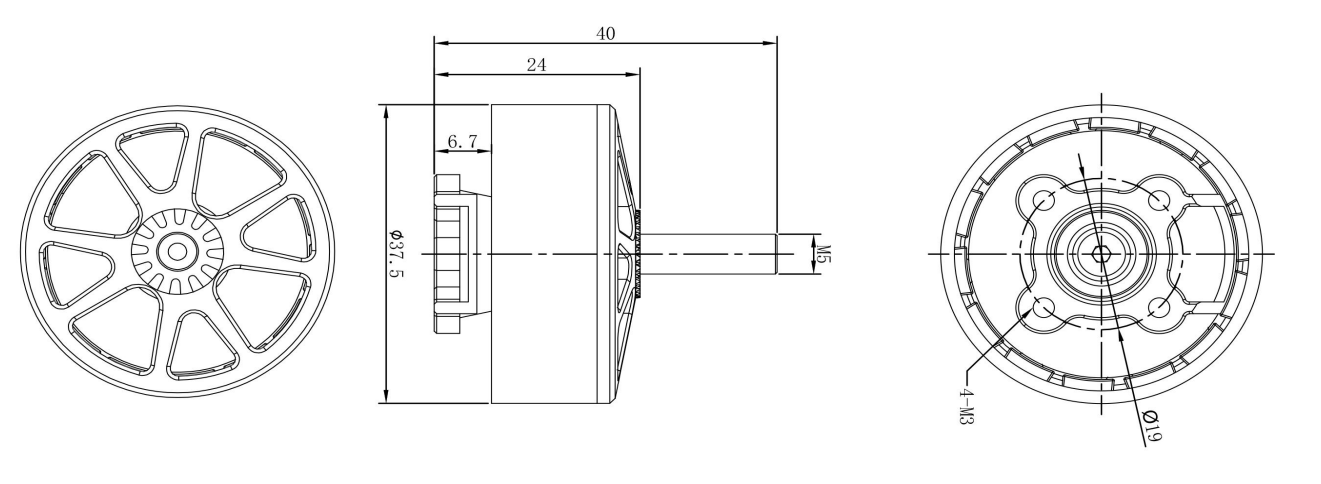

Motor Dimensions | 37.5*40mm | Internal Resistance | 62mΩ | |||
Framework | 12N14P | No.of cells | 3-6S | |||
Bearing Shaft | 5mm | Propeller | 9”-10” | |||
Lead | 18#AWG 250mm | Peak Current(6S) | 61.2A | |||
Weight | 84.5g(W/0 Silicone Wire) | Max.Power(6S) | 1469W | |||
LOAD TEST DATA | ||||||
item N | Propeller | VALTAGE (V) | Current (A) | Trust (g) | POWER(W) | Trust efficincy (G/W) |
TM3110-900KV | GF9045*3叶桨 | 24.0V | 5 | 693 | 120 | 5.78 |
24.0V | 10 | 1155 | 240 | 4.67 | ||
24.0V | 15 | 1596 | 360 | 4.37 | ||
24.0V | 20 | 1953 | 480 | 4.05 | ||
24.0V | 52.7 | 3255 | 1264.8 | 2.57 | ||
TM3110-900KV | GF1050*3叶桨 | 24.0V | 5 | 806 | 120 | 6.58 |
24.0V | 10 | 1355 | 240 | 5.53 | ||
24.0V | 15 | 1753 | 360 | 4.77 | ||
24.0V | 20 | 2026 | 480 | 4.2 | ||
24.0V | 61.2 | 3591 | 1468.8 | 2.44 |
