规格：

KV .................................................... ....................................... ...... 940

组态................................................. ................................... NP

定子直径................................................ .................................... 28mm

定子长度................................................ .......................................... 6mm

轴直径................................................ ....................................... 5mm

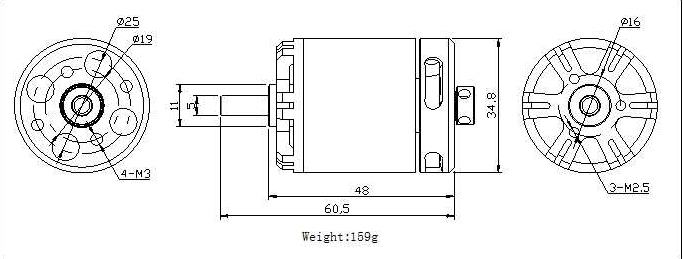

电机尺寸（直径*长度）.................................... .....Φ35×48毫米

重量（g）.................................... ................................................... ... 159克

电池数量（Lipo）.................................... .......................................... 3-6S

最大持续电流（A）.............................................. ....... 24.5A

最大连续功率（W）..................................................... ............... 543.9W

内部电阻................................................ .............................. 0.021欧姆

规格：

KV .................................................... ........................... ...... 1060

组态................................................. ................................... NP

定子直径................................................ ............................... 28mm

定子长度................................................ ............................... 6mm

轴直径................................................ ....................................... 5mm

电机尺寸（直径*长度）.................................... .....Φ35×48毫米

重量（g）.................................... ................................. ... 159克

电池数量（Lipo）.................................... ........................ 3-5S

最大持续电流（A）.............................................. ....... 44.2A

最大连续功率（W）..................................................... ...... 817.7瓦

内部电阻................................................ ..................... 0.018欧姆

规格：

KV .................................................... ......................................... 770

组态................................................. ................................... NP

定子直径................................................ .................................... 28mm

定子长度................................................ ..................................... 6mm

轴直径................................................ ....................................... 5mm

电机尺寸（直径*长度）.................................... .....Φ35×48毫米

重量（g）.................................... ........................................ ... 159克

电池数量（Lipo）.................................... ............................... 3-6S

最大持续电流（A）.............................................. ....... 37.2A

最大连续功率（W）..................................................... ...... 825.8瓦

内部电阻................................................ ..................... 0.034欧姆
