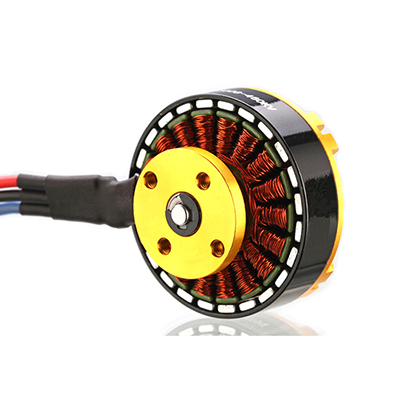

BE3608 3608 460KV 630KV 无刷直流电机

参数:

规格：
KV .................................................... ................................................... ...... 460
配置................................................ .................................... NP
定子直径................................................ .................................... 36mm
定子长度................................................ .......................................... 8mm
轴直径................................................ ....................................... 4.0mm

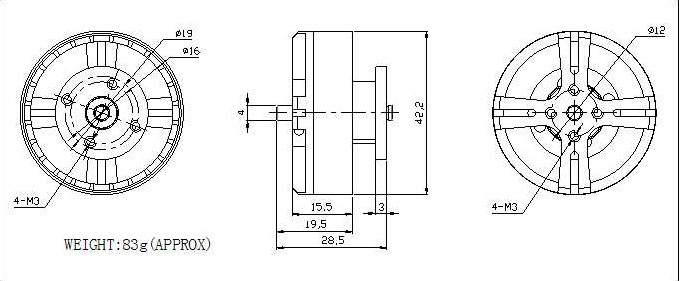

电机尺寸（直径*长度）.................................... .....Φ42×15毫米
重量（g）.................................... ................................................... ... 83克
电池数量（Lipo）..................................... .......................................... 3-6S
最大持续电流（A）.............................................. ................ 20.3A
最大连续功率（W）..................................................... ...... 450瓦
内部电阻................................................ ..................... 0.128欧姆



规格：
KV .................................................... ................................................... ...... 630
配置................................................ .................................... NP
定子直径................................................ .................................... 36mm
定子长度................................................ .......................................... 8mm
轴直径................................................ ....................................... 4.0mm
电机尺寸（直径*长度）.................................... .....Φ42×15毫米
重量（g）.................................... ................................................... ... 83克
电池数量（Lipo）..................................... .......................................... 3-6S
最大持续电流（A）.............................................. ................ 32.1A
最大连续功率（W）..................................................... ...... 700瓦
内部电阻................................................ ..................... 0.076欧姆
