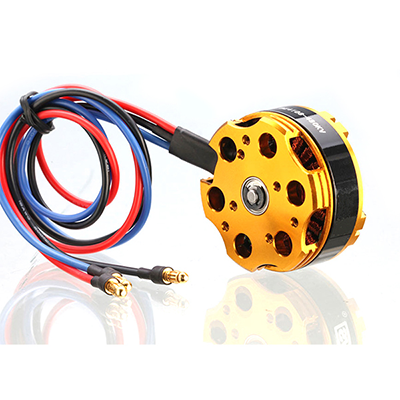

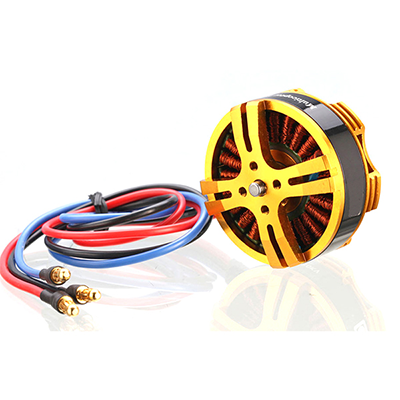

BE4108 4108 380KV 480KV 580KV 720KV 直流无刷电机

参数:

规格：
KV .................................................... ................................. ...... 380
结构................................................. ................................... NP
定子直径................................................ .................................... 41mm
定子长度................................................ ........................................ 8mm
轴直径................................................ ....................................... 4.0mm

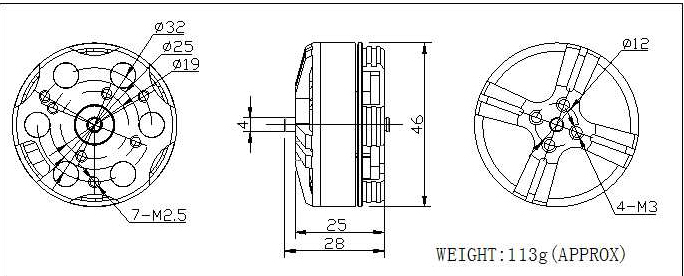

电机尺寸（直径*长度）.................................... .....Φ46x25毫米
重量（g）.................................... ........................................... ... 113克
电池数量（Lipo）.................................... ................................ 3-6S
最大持续电流（A）.............................................. ....... 17.2A
最大连续功率（W）..................................................... ...... 381瓦
内部电阻................................................ .................................... 0.193欧姆


规格：
KV .................................................... ................................. ...... 480
组态................................................. ................................... NP
定子直径................................................ .................................... 41mm
定子长度................................................ .................................. 8mm
轴直径................................................ ................................... 4.0mm
电机尺寸（直径*长度）.................................... .....Φ46x25毫米
重量（g）.................................... .......................................... 113克
电池数量（Lipo）.................................... .............................. 3-6S
最大持续电流（A）.............................................. ....... 27A
最大连续功率（W）..................................................... ...... 599瓦
内部电阻................................................ ..................... 0.125欧姆

规格：
KV ......................................... ............................................. 580
配置................................................ .................................... NP
定子直径................................................ .................................... 41mm
定子长度................................................ .................................... 8mm
轴直径................................................ ....................................... 4.0mm
电机尺寸（直径*长度）.................................... .....Φ46x25毫米
重量（g）.................................... .............................................. 113克
电池数量（Lipo）.................................... ................................... 3-6S
最大持续电流（A）.............................................. ....... 37A
最大连续功率（W）..................................................... ............... 821W
内部电阻................................................ ..................... 0.098欧姆


规格：
KV .................................................... ................................ ...... 720
配置................................................ .................................... NP
定子直径................................................ .................................... 41mm
定子长度................................................ .......................................... 8mm
轴直径................................................ ....................................... 4.0mm
电机尺寸（直径*长度）.................................... .....Φ46x25毫米
重量（g）.................................... ............................................. 113克
电池数量（Lipo）....................................... ................................ 3-6S
最大持续电流（A）............................................................ ....... 30A
最大连续功率（W）..................................................... ............... 666W
内部电阻................................................ ..................... 0.055欧姆
