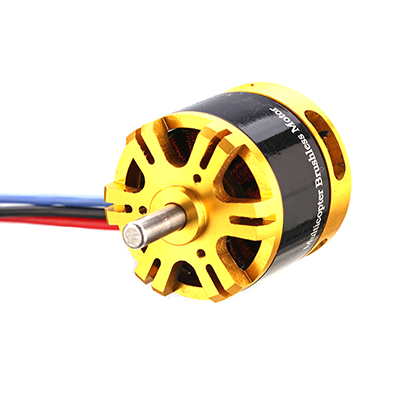

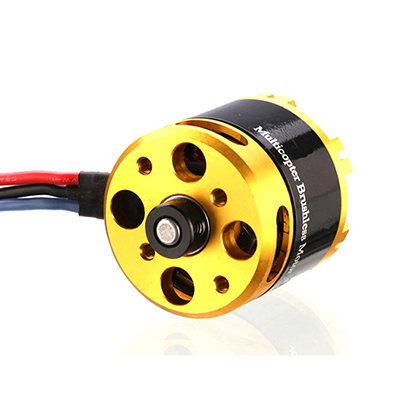

BE2814 2814 910KV 1280KV 1400KV出轴无刷电机
规格：
产品名称：BE2814长轴
功率：910KV
拉力：1990克
电机尺寸：Φ35×36
电池：3-6s LIPO
规格：
KV .................................................... ................................................... ...... 910
组态................................................. ................................... NP
定子直径................................................ .................................... 28mm
定子长度................................................ .......................................... 14mm
轴直径................................................ ....................................... 5.0mm

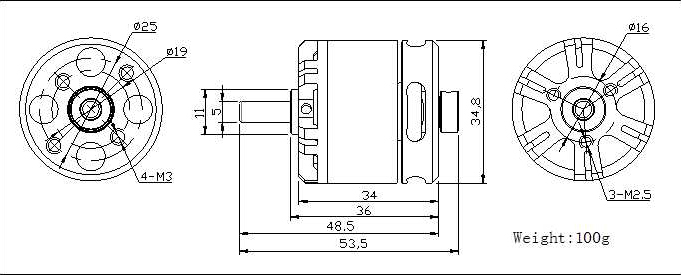

电机尺寸（直径*长度）.................................... .....Φ35×36毫米
重量（g）.................................... ................................................... ...100克
电池数量（Lipo）.................................... .......................................... 3-6S
最大持续电流（A）.............................................. ................ 34.2A
最大连续功率（W）..................................................... ...... 759瓦
内部电阻................................................ ..................... 0.061欧姆
规格：
KV .................................................... ................................................... ...... 1280
组态................................................. ................................... NP
定子直径................................................ .................................... 28mm
定子长度................................................ .......................................... 14mm
轴直径................................................ ....................................... 5.0mm
电机尺寸（直径*长度）.................................... .....Φ35×36毫米
重量（g）.................................... ................................................... ...100克
电池数量（Lipo）.................................... .......................................... 3-6S
最大持续电流（A）.............................................. ....... 38.5A
最大连续功率（W）..................................................... ............... 569W
内部电阻................................................ .................................... 0.022欧姆
规格：
KV .................................................... ................................................... ...... 1400
组态................................................. ................................... NP
定子直径................................................ .................................... 28mm
定子长度................................................ .......................................... 14mm
轴直径................................................ ....................................... 5.0mm
电机尺寸（直径*长度）.................................... .....Φ35×36毫米
重量（g）.................................... ................................................... ...100克
电池数量（Lipo）.................................... .......................................... 3-6S
最大持续电流（A）.............................................. ....... 42.8A
最大连续功率（W）..................................................... ............... 633W
内部电阻................................................ .................................... 0.015欧姆
KV .................................................... ................................................... ...... 910
组态................................................. ................................... NP
定子直径................................................ .................................... 28mm
定子长度................................................ .......................................... 14mm
轴直径................................................ ....................................... 5.0mm
电机尺寸（直径*长度）.................................... .....Φ35×36毫米
重量（g）.................................... ................................................... ...100克
电池数量（Lipo）.................................... .......................................... 3-6S
最大持续电流（A）.............................................. ................ 34.2A
最大连续功率（W）..................................................... ...... 759瓦
内部电阻................................................ ..................... 0.061欧姆
规格：
KV .................................................... ................................................... ...... 1280
组态................................................. ................................... NP
定子直径................................................ .................................... 28mm
定子长度................................................ .......................................... 14mm
轴直径................................................ ....................................... 5.0mm
电机尺寸（直径*长度）.................................... .....Φ35×36毫米
重量（g）.................................... ................................................... ...100克
电池数量（Lipo）.................................... .......................................... 3-6S
最大持续电流（A）.............................................. ....... 38.5A
最大连续功率（W）..................................................... ............... 569W
内部电阻................................................ .................................... 0.022欧姆
规格：
KV .................................................... ................................................... ...... 1400
组态................................................. ................................... NP
定子直径................................................ .................................... 28mm
定子长度................................................ .......................................... 14mm
轴直径................................................ ....................................... 5.0mm
电机尺寸（直径*长度）.................................... .....Φ35×36毫米
重量（g）.................................... ................................................... ...100克
电池数量（Lipo）.................................... .......................................... 3-6S
最大持续电流（A）.............................................. ....... 42.8A
最大连续功率（W）..................................................... ............... 633W
内部电阻................................................ .................................... 0.015欧姆
