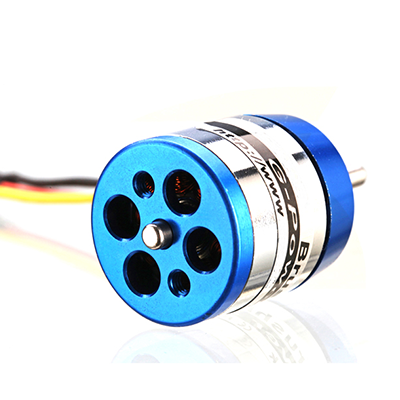

D2225 2225 1350KV 1600KV 2000KV customizable brushless motor
D2225 2225 1350KV 1600KV 2000KV customizable brushless motor

D2225 2225 1350KV 1600KV 2000KV customizable brushless motor

D2225 W2.png

D2225 2225 1350KV 1600KV 2000KV customizable brushless motor


Model:D2225
KV:1350KV
Pull:340g
Motor Size(mm):diameter 22 * 25
Battery:2-3s Lipo
Shaft diameter:3.175 * 41mm
Weight:32g
Max. Power:105W
Test propeller :6 * 5/7 * 3
ESC(A):18A
................................................... .......................


Model:D2225-15
KV:1600KV
Pull:440g
Motor Size(mm):diameter 22 * 25
Battery:2-3s Lipo
Shaft Size:3.175 * 41mm
Weight:32g

Max. power:90W
ESC(A):18A
Propeller:8 * 4/7 * 3
................................................... ..................................


Model:D2225-12
KV:2000KV
Pull:450g
Motor Size(mm):diameter 22 * 25
Battery:2-3s Lipo
Shaft diameter:3.175 * 41mm
Weight:32g
Max. Power :120W
ESC(A):18A
Propeller:6 * 4/6 * 5


D2225 drawing.png
