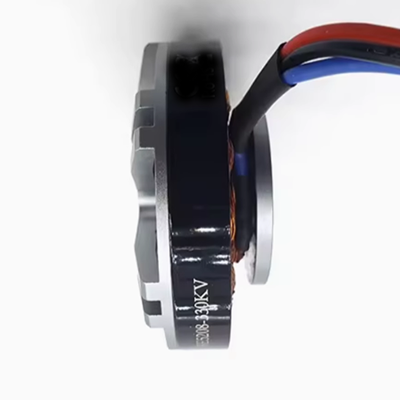

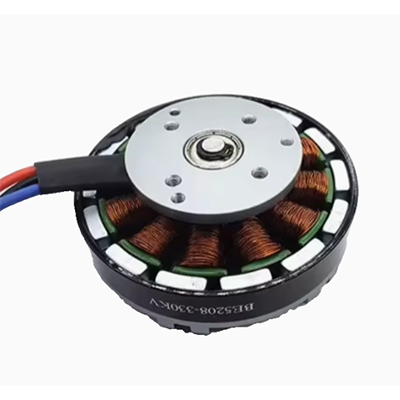

BE5208 5208 330KV Brushless Motor
BE5208 5208 330KV Brushless Motor

BE5208 5208 330KV Brushless Motor


Model:BE5208

KV:330KV

Pull: 3300g

Motor Size: Φ63×30

Battery: 3-6s Lipo


Specification:

KV.................................................330

Configu ration...............................NP

Stator Diameter............................52mm

Stator Length.................................8mm

Shaft Diameter..............................5.0mm

Motor Dimensions(Dia.*Len)........Φ63x30mm

Weight(g).......................................200g

No.of Cells(Lipo).............................3-6S

Max Continuous current(A)...........28.2A

Max Continuous Power(W)..............626W
