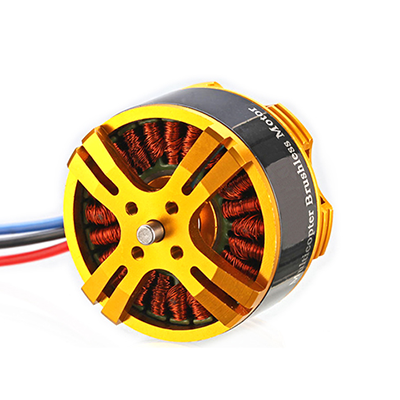

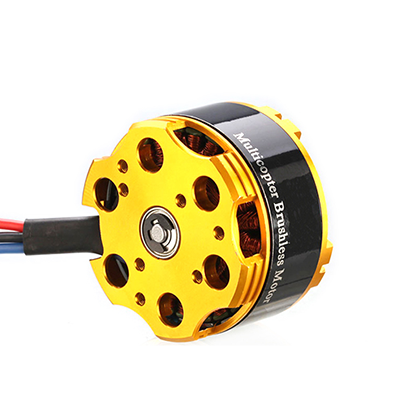

BE4114 4114 DC brushless motor
BE4114 4114 DC brushless motor

BE4114 4114 DC brushless motor


BE4114 350KV Brushless Motor


Specifications:


Item name:BE4114
KV:350KV
Pull: 1670g
Motor size: Φ46×31

Battery: 5-6s Lipo

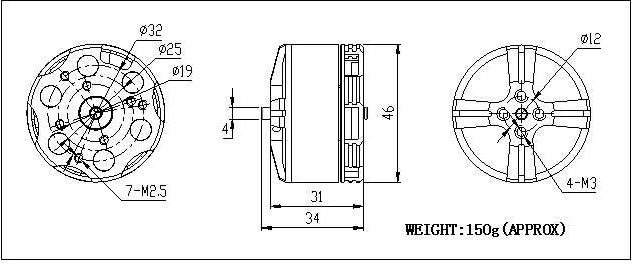

BE4114 D.jpg


Specifications:
KV..........................................................................................350
Configu ration...........................................................................NP
Stator Diameter........................................................................41mm
Stator Length.........................................................................14mm
Shaft Diameter.........................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ46×31mm
Weight (g).............................................................................150g
No.of Cells(Lipo)......................................................................5-6S
Max Continuous current(A).........................................................11.5A
Max Continuous Power(W)..........................................................212W

Internal resistance...................................................................0.126ohm
