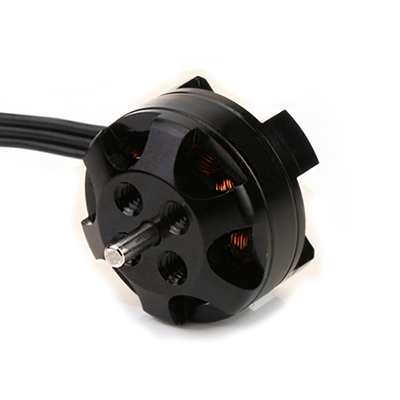

BE1102 1102 DC brushless motor
BE1102 1102 DC brushless motor

BE1102 1102 DC brushless motor

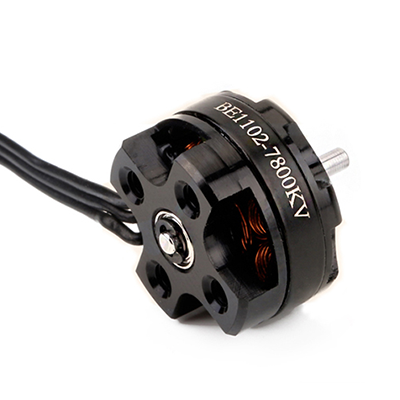

BE1102 7800KV 10000KV Mirco Brushless Motor


BE1102 D.png

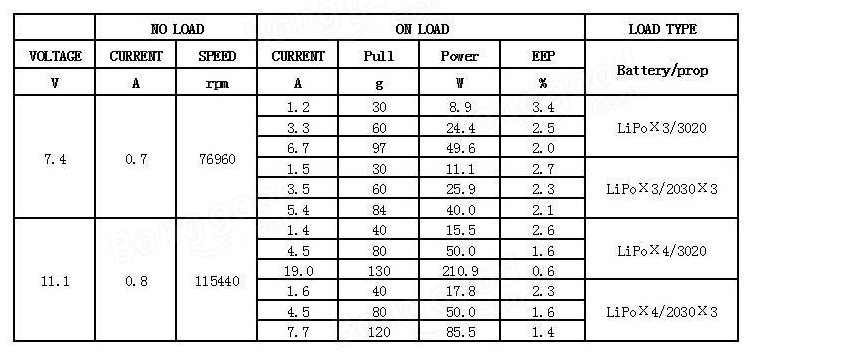

KV:10000KV
Configu ration:NP
Stator Diameter:11mm
Stator Length:2mm
Shaft Diameter:1.5mm

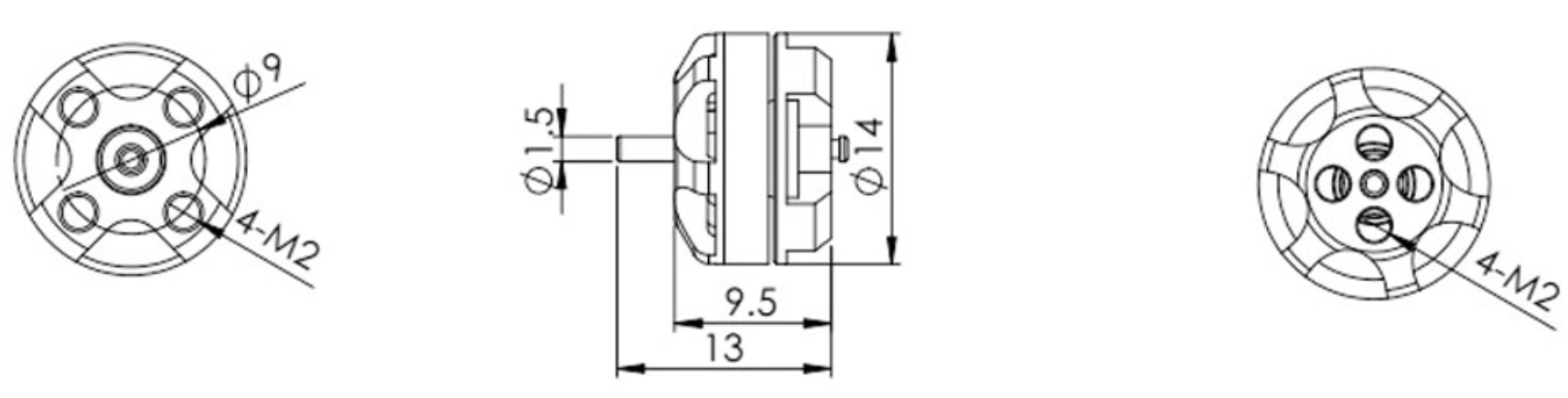

Motor Dimensions(Dia.*Len):Φ14×9.5mm
Weight (g):3.51g
No.of Cells(Lipo):2-3S
Max Continuous current(A):7.7A
Max Continuous Power(W):85.5W
Pull:120g

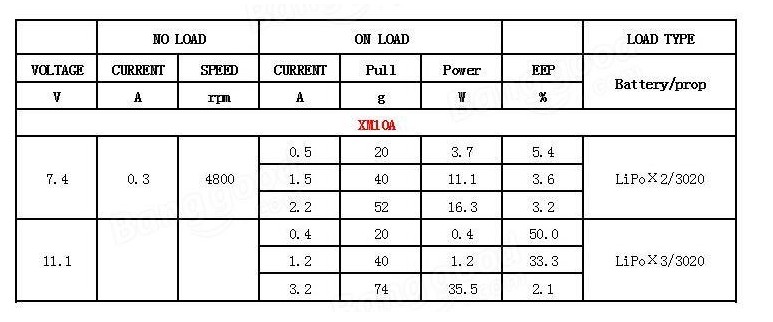

Specifications:

KV:7800
Configu ration:NP
Stator Diameter:11mm
Stator Length:2mm
Shaft Diameter:1.5mm
Motor Dimensions(Dia.*Len):Φ14×9.5mm
Weight (g):3.51g
No.of Cells(Lipo):2-3S
Max Continuous current(A):3.2A
Max Continuous Power(W):35.5W
Pull:74g
