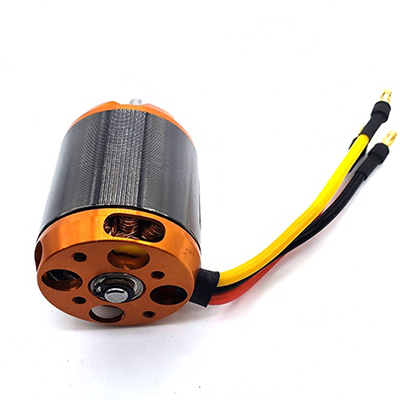

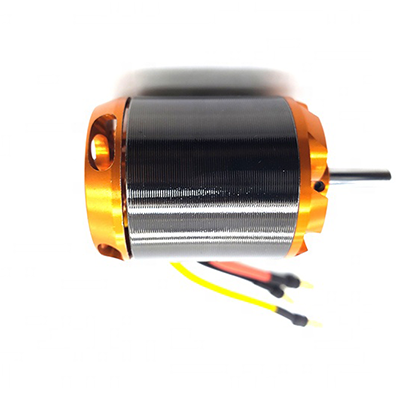

D3548 3548 DC brushless motor
D3548 3548 DC brushless motor

D3548 3548 DC brushless motor



D3548
 790KV 900KV 1100KV Brushless Outrunner Motor


Item name: D3548-6

KV:790KV

Pull: 1650g

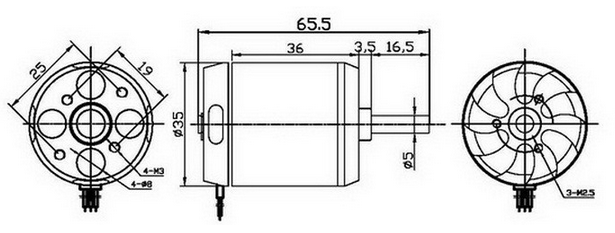

Motor size(mm): diameter35*48

Shaft Size: diameter5*65.5mm

Battery: 3-5s Lipo

Weight:156g

Max power:717W

Prop:13*8/12*6

ESC:70A

......................................................................................................


Item name: D3548-5

KV:900KV

Pull: 1780g

Motor size(mm): diameter35*48

Shaft Size: diameter5*65.5mm

Battery: 3-5s Lipo

Weight:156g

Max power:770W

Prop:13*7/12*7

ESC:70A


......................................................................................................


Item name: D3548-4

KV:1100KV

Pull: 2150g

Motor size(mm): diameter35*48

Shaft Size: diameter5*65.5mm

Battery: 3-5s Lipo

Weight:156g

Max power:911W

Prop:12*6/11*8

ESC:70A


D3548 D.png
