D2826 2826 DC brushless motor
D2826 2826 DC brushless motor

D2826 2826 DC brushless motor

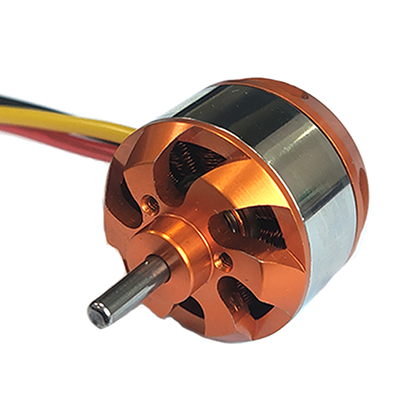

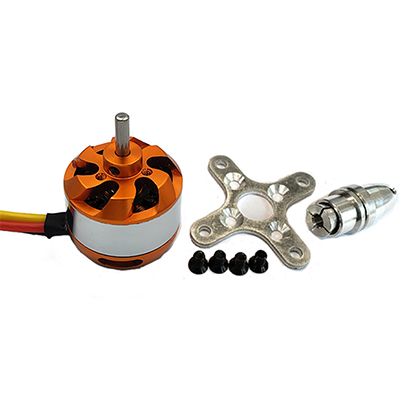

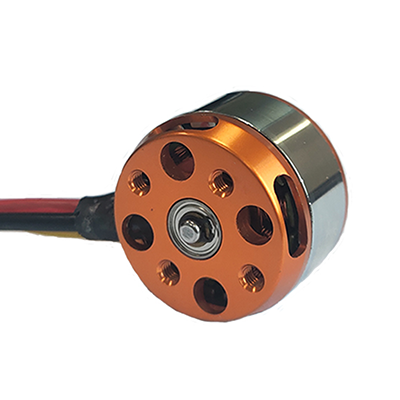

D2826 2826 2200KV 1400KV 1000KV 930KV Brushless Outrunner Motor


item name: D2826-6

KV:2200KV

Pull: 960g

Motor size(mm): diameter27.7*26.3

Shaft Size: diameter3.175*37mm

Battery: 2-3s Lipo

Weight:50g

Max power:342W

Prop:7*3/7*4

ESC:40A

........................................................................


Model:D2826-10

KV:1400KV

Max Power: 205W

Weight: 50g

Pro: 9*4.7/7*4

Size: 27.7*26.3

Battery: 2-3lipo

Ri: 0.078

Pull(Approx):780g

ESC recommended: 40A

............................................................................

Item name: D2826-13

KV:1000KV

Pull: 660g

Motor size(mm): diameter27.7*26.3

Shaft Size: diameter3.175*37mm

Battery: 2-3s Lipo

Weight:50g

Max power:150W

Prop:11*7/10*5

ESC:40A

.....................................................................................................


Item name: D2826-15

KV:930KV

Pull: 645g

Motor size(mm): diameter27.7*26.3

Shaft Size: diameter3.175*37mm

Battery: 2-3s Lipo

Weight:50g

Max power:130W

Prop:12*6/10*7

ESC:40A

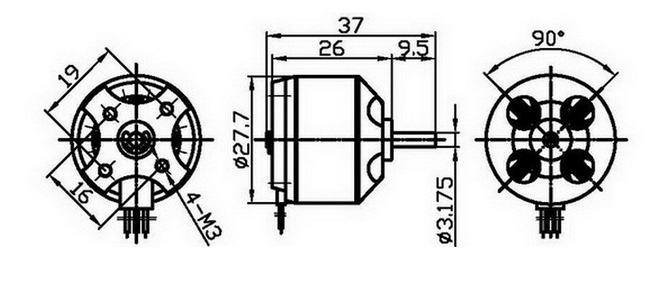

D2826 D.png
