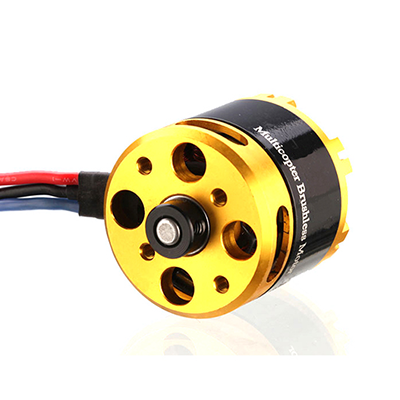

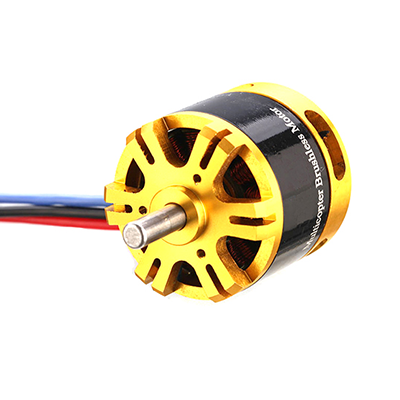

BE2814 2814 910KV 1280KV 1400KV Long Shaft Brushless Motor
Specifications:
Battery: 3-6s Lipo
Specifications:
KV..............................................................................................................910
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................14mm
Shaft Diameter.......................................................................................5.0mm

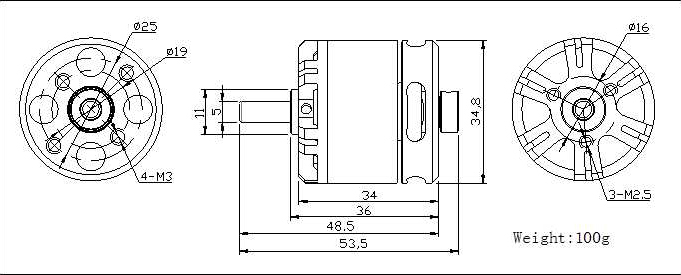

Motor Dimensions(Dia.*Len)...............................................Φ35×36mm
Weight (g)...................................................................................................100g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................34.2A
Max Continuous Power(W)...........................................................759W
Internal resistance..............................................................................0.061ohm
Specifications:
KV..............................................................................................................1280
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................14mm
Shaft Diameter.......................................................................................5.0mm
Motor Dimensions(Dia.*Len)...............................................Φ35×36mm
Weight (g)...................................................................................................100g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................38.5A
Max Continuous Power(W)...........................................................569W
Internal resistance..............................................................................0.022ohm
Specifications:
KV..............................................................................................................1400
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................14mm
Shaft Diameter.......................................................................................5.0mm
Motor Dimensions(Dia.*Len)...............................................Φ35×36mm
Weight (g)...................................................................................................100g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................42.8A
Max Continuous Power(W)...........................................................633W
Internal resistance..............................................................................0.015ohm
