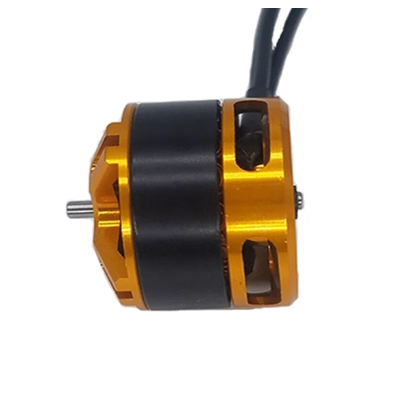

BE1806 1806 2300KV DC brushless motor
BE1806 1806 2300KV DC brushless motor

BE1806 1806 2300KV DC brushless motor


Specifications:


Item name:BE1806


KV:2300KV


Pull: 521g


Motor size: Φ23×18.5


Battery: 2-4s Lipo

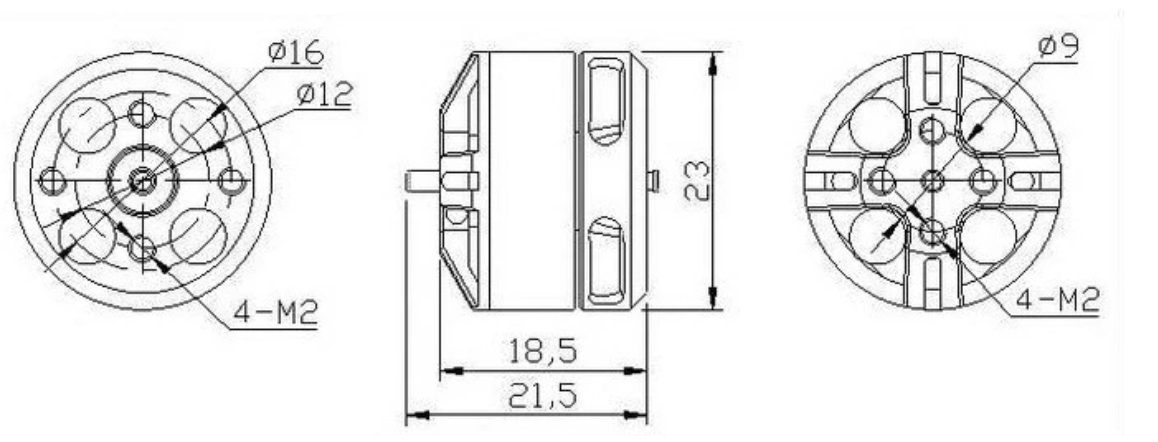

BE1806 D.png

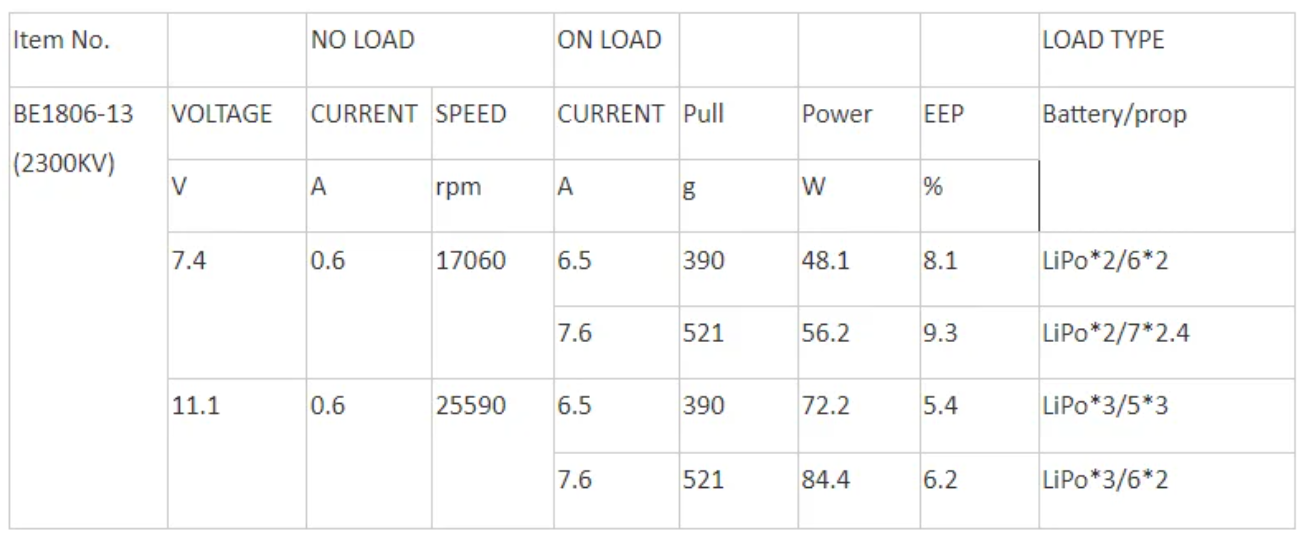

Specifications:
KV.................................................................2300
Configu ration.............................................NP
Stator Diameter.........................................23mm
Stator Length.............................................18.5mm
Shaft Diameter...........................................2.0mm
Motor Dimensions(Dia.*Len).....................Φ23×18.5mm
Weight (g)....................................................18g
No.of Cells(Lipo)............................................2-3S
Max Continuous current(A)............................7.6A
Max Continuous Power(W).............................84.4W


1806 D2.png
