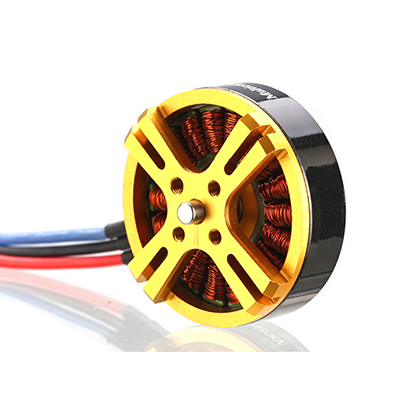

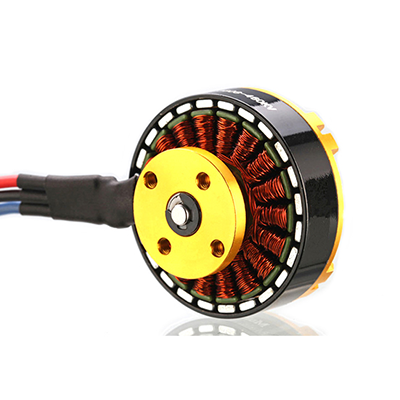

BE3608 3608 460KV 630KV Brushless Motor
Specifications:
Battery: 3-6s Lipo
Specifications:
KV..............................................................................................................460
Configu ration....................................................................................NP
Stator Diameter....................................................................................36mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4.0mm

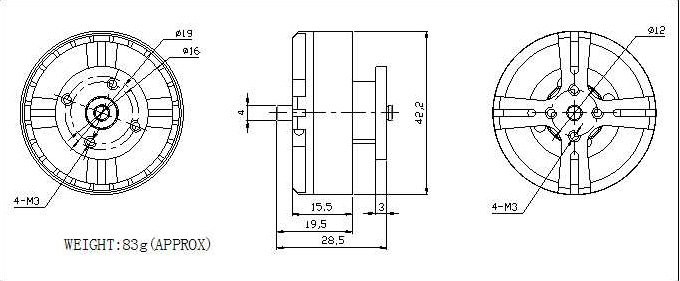

Motor Dimensions(Dia.*Len)...............................................Φ42×15mm
Weight (g)...................................................................................................83g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................20.3A
Max Continuous Power(W)...........................................................450W
Internal resistance..............................................................................0.128ohm
Specifications:
KV..............................................................................................................630
Configu ration....................................................................................NP
Stator Diameter....................................................................................36mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ42×15mm
Weight (g)...................................................................................................83g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................32.1A
Max Continuous Power(W)...........................................................700W
Internal resistance..............................................................................0.076ohm
