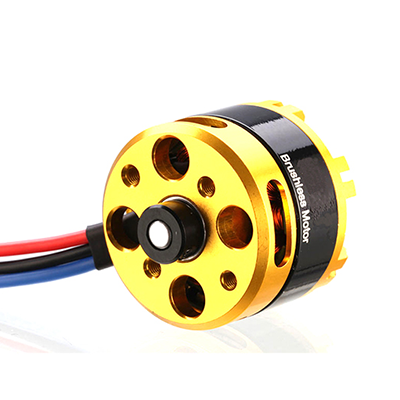

BE2808 2808 DC brushless motor
BE2808 2808 DC brushless motor

BE2808 2808 DC brushless motor

BE2808 W2.png

Inquiry now

BE2808 2808 1080KV DC brushless motor manufacturer

Specifications:


Item name:BE2808
KV:1080KV
Pull: 1430g
Motor size: Φ35×30

Battery: 3-6s Lipo


BE2808 D.jpg

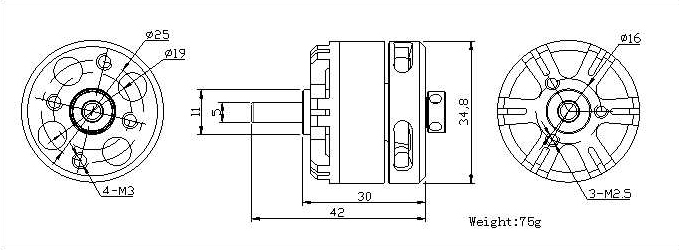

Specifications:
KV..............................................................................................................1080
Configu ration....................................................................................NP
Stator Diameter....................................................................................28mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................5mm
Motor Dimensions(Dia.*Len)...............................................Φ35×30mm
Weight (g)...................................................................................................75g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................23.6A
Max Continuous Power(W)...........................................................523W
Internal resistance..............................................................................0.081ohm
