D3536 3536 910KV 1000KV 1250KV 1450KV brushless motor
D3536 3536 910KV 1000KV 1250KV 1450KV brushless motor

D3536 3536 910KV 1000KV 1250KV 1450KV brushless motor

D3536 W2.png

Model:D3536-9
KV:910KV
Pull:1050g
Motor Size(mm):φ35 * 36
Shaft Size:diameter 5 * 53.5mm
Battery:2-4s Lipo
Weight:102g
Max. Power:470W
Propeller:12 * 5/10 * 7
ESC:50A
................................................... ................................................... ..............................................
Model:D3536-8
KV:1000KV
Pull:1160g
Motor Size(mm):diameter 35 * 36
Shaft Size:diameter 5 * 53.5mm
Battery:2-4s Lipo
Weight:102g
Max. Power:480W
Propeller:11 * 5.5 / 10 * 6
ESC:50A

................................................... ................................................... ..............................................

Model:D3536-6
KV:1250KV
Pull:1270g
Motor Size(mm):diameter 35 * 36
Shaft Size:diameter 5 * 53.5mm
Battery:2-4s Lipo
Weight:102g
Max. Power:500W
Propeller:10 * 4.7 / 9 * 4.5
ESC:50A
................................................... ................................................... ..............................................
Model:D3536-5
KV:1450KV
Pull:1380g
Motor Size(mm):diameter 35 * 36
Shaft Size:diameter 5 * 53.5mm
Battery:2-4s Lipo
Weight:102g
Max. Power:655W
Propeller:9 * 6/8 * 4
ESC:50A

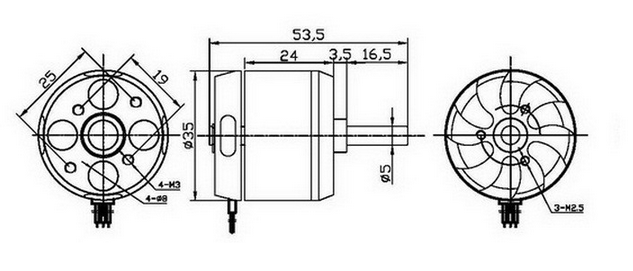

D3536 drawing.png
