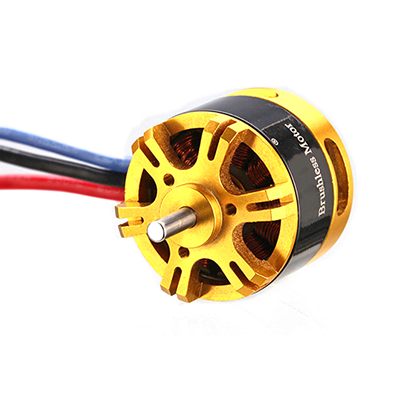

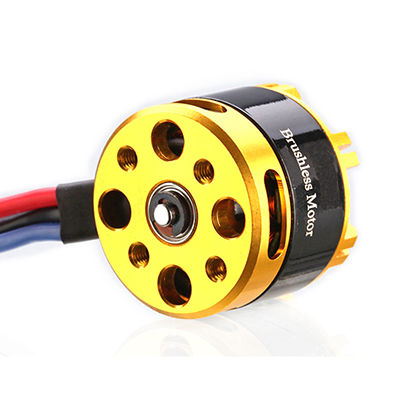

BE2208 2208 1070KV 1400KV 2600KV High Torque Brushless Motor
Specifications:
Item name:BE2208 Long shaft
KV:1070KV
Pull: 1025g
Motor size: Φ28×26
Battery: 2-5s Lipo
Specifications:
KV..............................................................................................................1070
Configu ration....................................................................................NP
Stator Diameter....................................................................................22mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................3mm

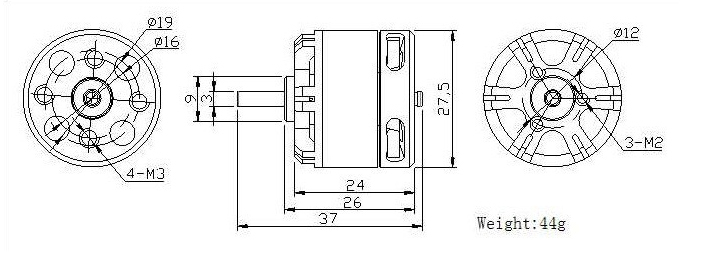

Motor Dimensions(Dia.*Len)...............................................Φ28×26mm
Weight (g)...................................................................................................44g
No.of Cells(Lipo).....................................................................................2-5S
Max Continuous current(A)............................................................19A
Max Continuous Power(W)...........................................................351W
Specifications:
KV..............................................................................................................1400
Configu ration....................................................................................NP
Stator Diameter....................................................................................22mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................3mm
Motor Dimensions(Dia.*Len)...............................................Φ28×26mm
Weight (g)...................................................................................................44g
No.of Cells(Lipo).....................................................................................2-4S
Max Continuous current(A)............................................................26A
Max Continuous Power(W)...........................................................384W
Specifications:
KV..............................................................................................................2600
Configu ration....................................................................................NP
Stator Diameter....................................................................................22mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................3mm
Motor Dimensions(Dia.*Len)...............................................Φ28×26mm
Weight (g)...................................................................................................44g
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)............................................................43.1A
Max Continuous Power(W)...........................................................478W
Internal resistance..............................................................................0.044ohm
