BE2212 2212 DC brushless motor
BE2212 2212 DC brushless motor

BE2212 2212 DC brushless motor

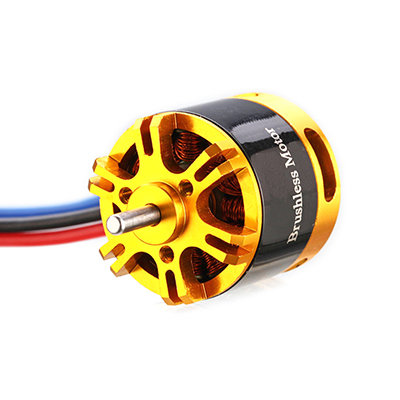

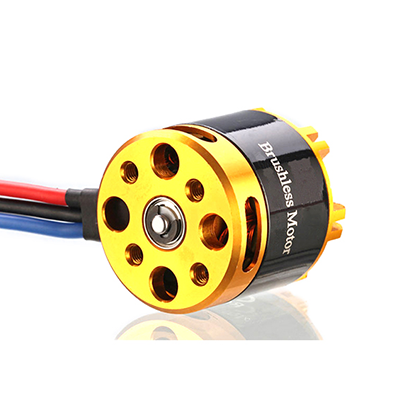

BE2212 1450KV 2300KV Long Shaft Brushless Motor

Specifications:


Item name:BE2212 long shaft
KV:1450KV
Pull: 1000g
Motor size: Φ28×30

Battery: 3-4s Lipo


BE2212 D.jpg


Specifications:
KV...........................................................................................1450
Configu ration.............................................................................NP
Stator Diameter.......................................................................22mm
Stator Length..........................................................................12mm
Shaft Diameter...........................................................................3mm
Motor Dimensions(Dia.*Len)...............................................Φ28×30mm
Weight (g)................................................................................66g
No.of Cells(Lipo)........................................................................3-4S
Max Continuous current(A)..........................................................39A
Max Continuous Power(W)...........................................................432W
Internal resistance..................................................................0.067ohm


Specifications:
KV.............................................................................................2300
Configu ration.............................................................................NP
Stator Diameter.........................................................................22mm
Stator Length..........................................................................12mm
Shaft Diameter.........................................................................3mm
Motor Dimensions(Dia.*Len)...............................................Φ28×30mm
Weight (g)..............................................................................66g
No.of Cells(Lipo)......................................................................3-4S
Max Continuous current(A)........................................................39A
Max Continuous Power(W).........................................................288W
Internal resistance..................................................................0.032ohm
